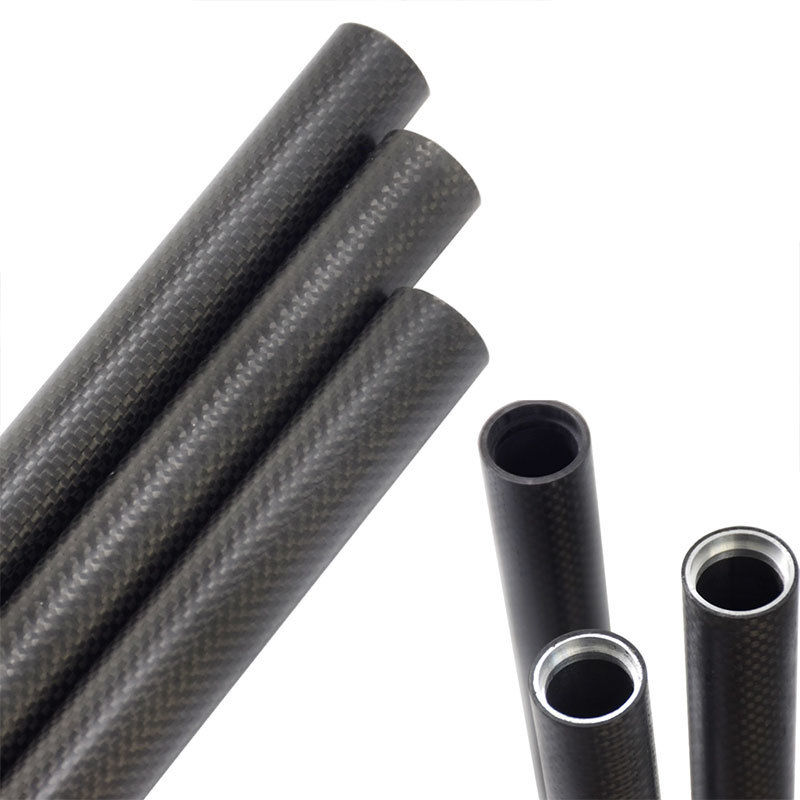

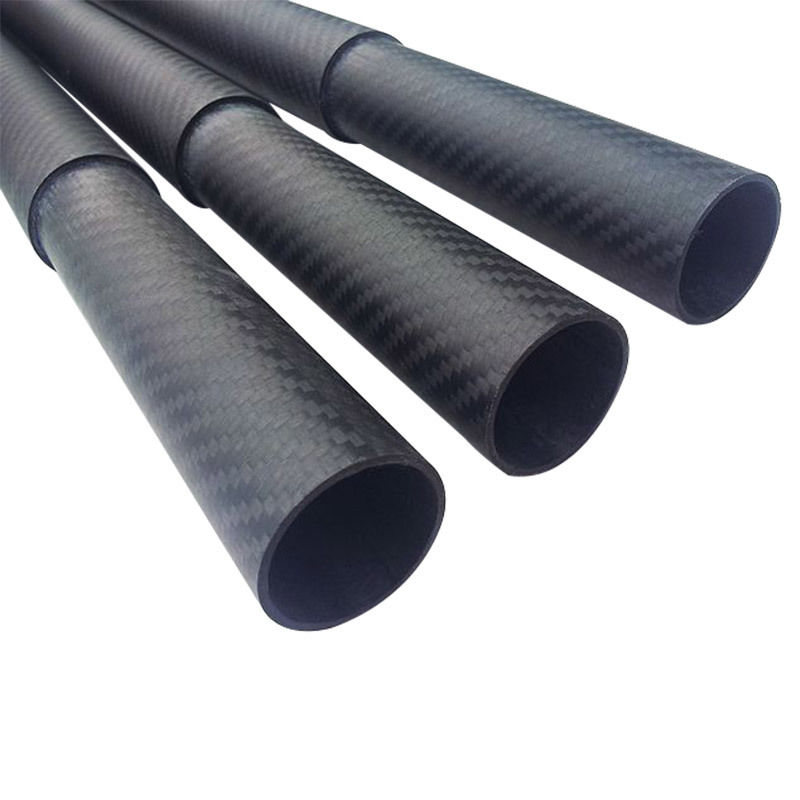

Carbon Fiber Tube for Telescopic Pole (30mm, external Ø - 27mm, inner Ø) 1000mm

Description de produit

Carbon Fiber Tube for Telescopic Pole (30mm, external Ø - 27mm, inner Ø) 1000mm

Carbon fiber tube for telescopic pole, made entirely of high-quality carbon fiber. It is real carbon fiber, pressed and cured in the oven. With constant thickness, very high hardness, and very little weight.

The carbon fiber tube is made by the tube rolling process, and can be designed with multi-angle ply to create high-performance, high-quality carbon fiber tubes. It can be widely used in medical equipment, sports equipment, drones, industrial machinery, and various rollers.

Our carbon fiber adjustable telescopic tube is made of carbon fiber material, and it has high strength, is very light in weight, very flexible and solid, chemically corrosion resistant. Our carbon fiber tube is usually used in telescopes, furniture, models, helicopters, planes & electrical products. And most of all, we accept customized.

If you need a tube with other lengths, diameters, or thicknesses, do not hesitate to contact us; we can manufacture it.

CHARACTERISTICS

• Length: 1000mm (Tolerance ± 10mm.)
• Outside diameter: 30mm. (Tolerance ± 0.2mm.)
• Internal diameter: 27mm. (Tolerance ± 0.2mm.)
• Wall: 1.5mm. (Tolerance ± 0.2mm.)
• Weight: 190gr (Tolerance ± 5gr.)

Why Choose Us?

• We have specialized in carbon fiber and fiberglass products for more than 10 years in this field.
• We have passed many certificates, and it shows our outstanding product procedure and quality.
• We have a quality control laboratory to ensure the quality of each piece, fewer problems during use, and we can provide you with he test report for your reference.
• Customize according to your requirements, with strong ability in design and customization.
• We have many customers from all over the world, and now we are a supplier to the world's top 500.
• We use foreign carbon fiber material to ensure the quality and use stainless steel mould to ensure the product processing.
• Most important is that we are people who like learning and competition.

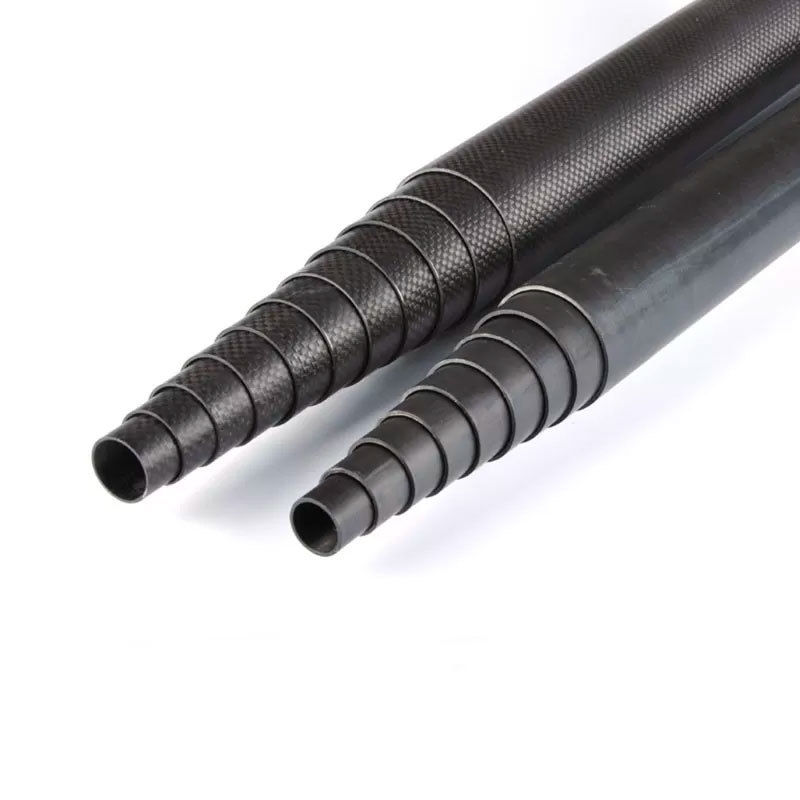

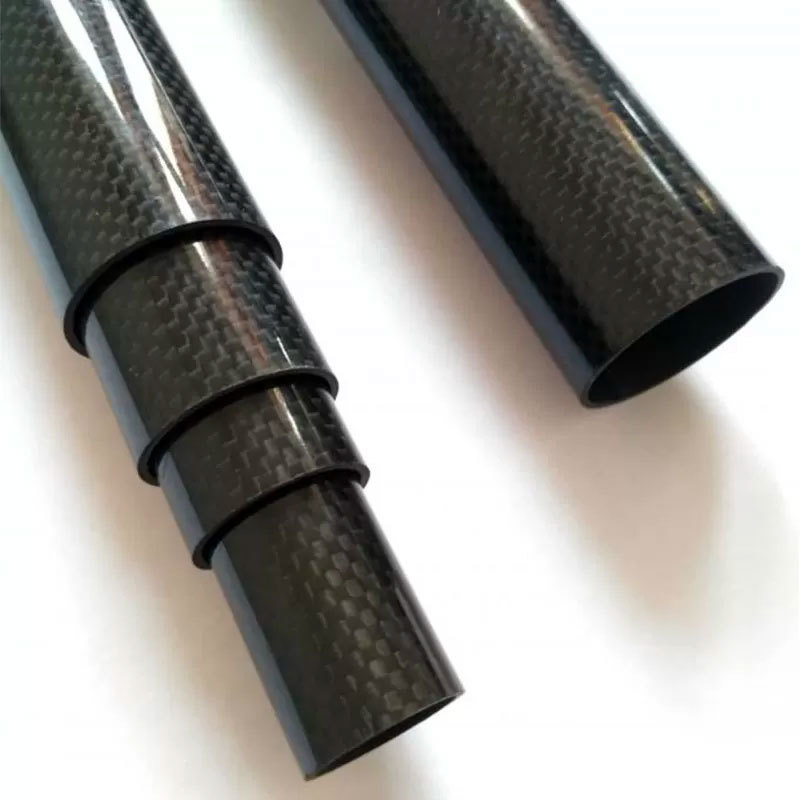

Detailed Size

CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional

Strong Clamps

CFR Nylon Injection moulded and Aluminum 7075 metal fitting

Roll-wrapped Carbon Fiber

Material option: UD Carbon Fiber, 3K

Customized Length acceptable

Regular length per section, 0.9 meter, 1.5 meters, 1.8 meters. Any customized length acceptable

Windows,Building, Gutter Cleaning

Max load 4KGS, windows cleaning waterfed poles
