Thick Wall Carbon Fiber Tube: High-Strength Structural Tubing for Demanding Applications

As industries push for lighter, stronger, and more reliable materials, carbon fiber has become a leading choice in structural engineering. While standard carbon fiber tubes offer excellent performance, certain applications require additional rigidity, higher load capacity, and improved durability. This is where the Thick Wall Carbon Fiber Tube excels.

These heavy-duty tubes combine the exceptional strength of carbon fiber with increased wall thickness, creating a structural component capable of withstanding extreme stresses without compromising weight efficiency.

What Is a Thick Wall Carbon Fiber Tube?

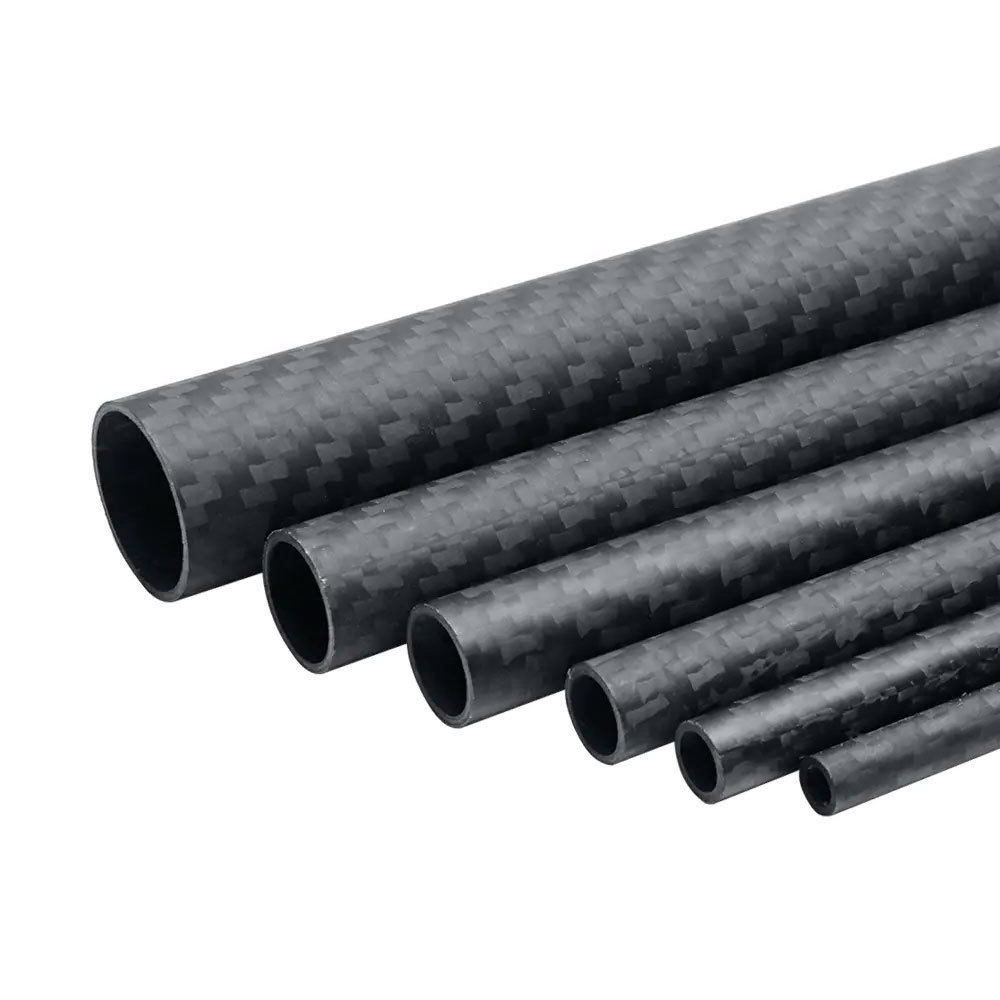

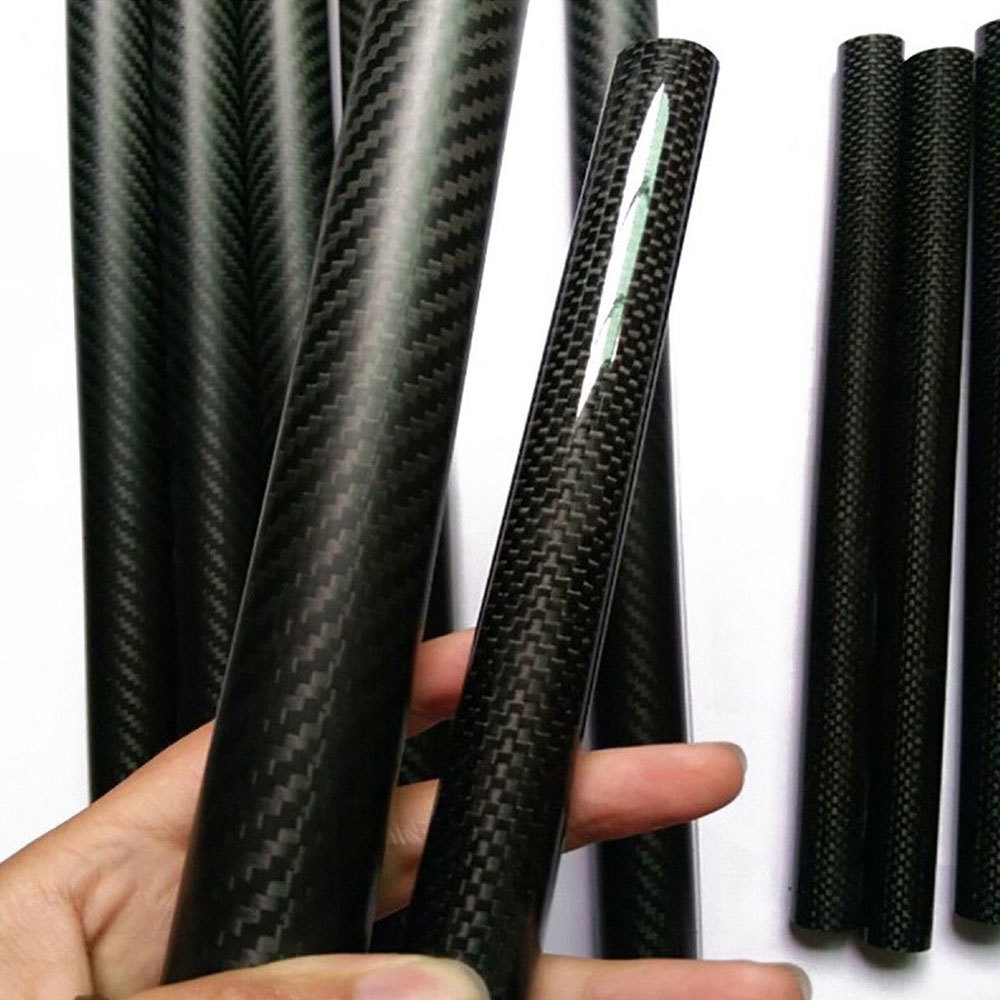

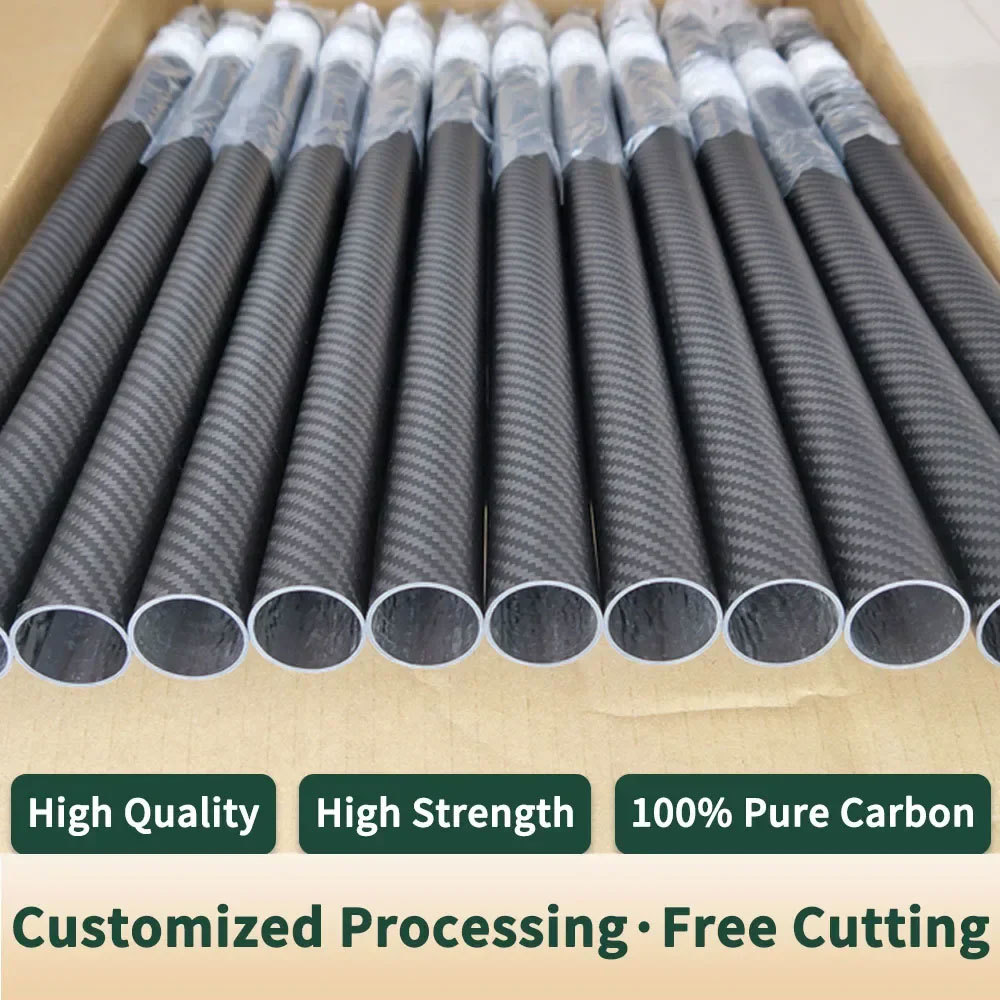

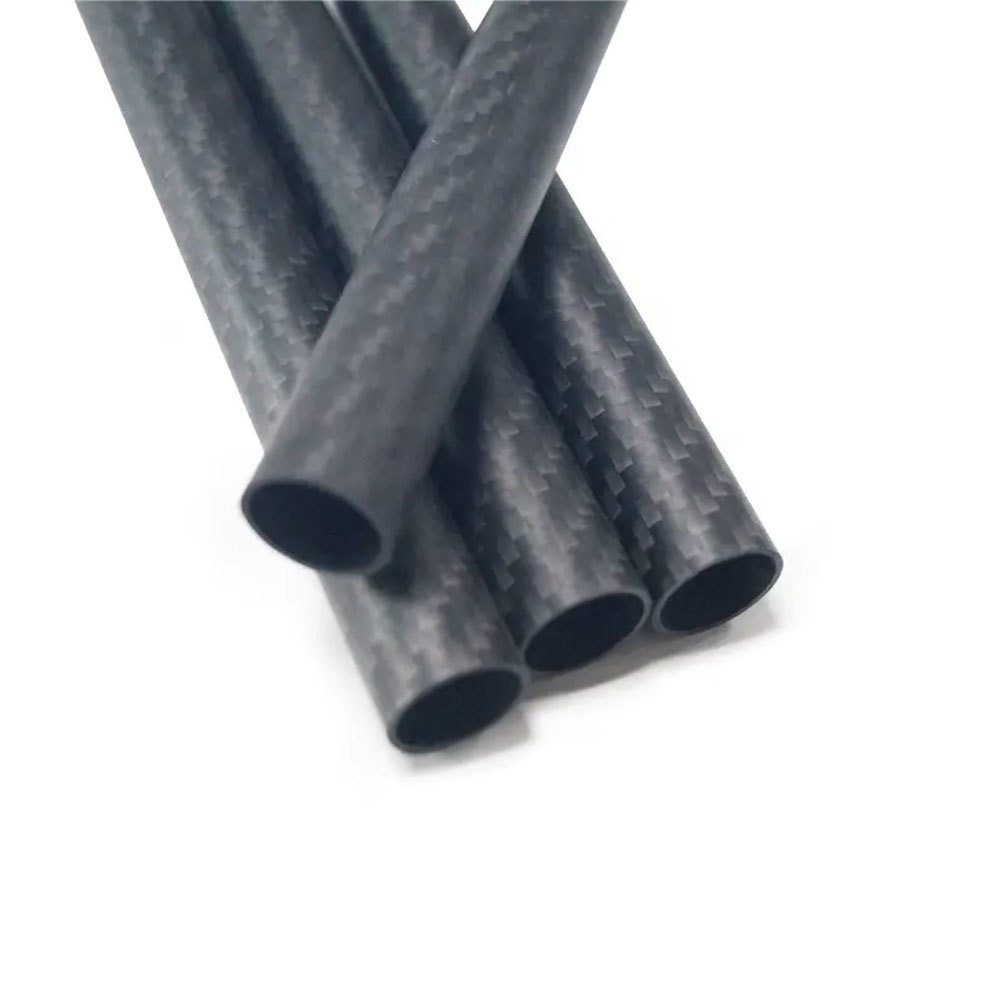

A Thick Wall Carbon Fiber Tube is a composite tube manufactured with a significantly greater wall thickness—often ranging from 2 mm to 10 mm or more—using carbon fiber reinforcement and epoxy resin.

The extra material provides enhanced mechanical performance, including superior bending resistance, impact strength, and compression stability.

These tubes are often produced using roll-wrapping or filament winding, which offer precise fiber orientation and high multi-directional strength.

Key Advantages of Thick Wall Carbon Fiber Tubes

1. Exceptional Structural Strength: The increased wall thickness allows the tube to handle heavy loads and extreme stress without deformation. This makes it ideal for applications such as mechanical arms, support beams, and industrial tooling.

2. Superior Bending and Torsional Stiffness: Thicker walls significantly improve both bending rigidity and torsional resistance. This advantage is critical for long-span structures, torque shafts, and high-speed machinery.

3. Impact and Fatigue Resistance: Thick wall construction distributes energy more effectively, giving the tube excellent resistance to repeated impacts, vibration, and long-term cyclic loads.

4. Lightweight Compared to Metals: Even at higher thickness, carbon fiber remains dramatically lighter than steel or aluminum while delivering comparable or superior strength.

5. High Temperature, Corrosion, and Chemical Resistance: Unlike metals, carbon fiber will not rust, corrode, or degrade in harsh environments—making it suitable for marine, industrial, and outdoor use.

Applications of Thick Wall Carbon Fiber Tubes

Thick-wall CFRP tubes are widely used in areas that demand strong, lightweight, and durable structural components:

• Industrial automation: robotic arms, end effectors, gantry systems
• Aerospace & UAVs: landing gear, support beams, camera mounts
• Cinematography equipment: sliders, stabilizer arms, heavy-duty tripods
• Mechanical engineering: drive shafts, rollers, torque tubes
• Marine gear: tiller extensions, pole systems
• Sports equipment: reinforced shafts, protective components
• Automotive & racing: chassis reinforcement, roll structures
