High-Strength 3K Carbon Fiber Plate with Customized Thickness and Light Weight for Industrial Applications

Description de produit

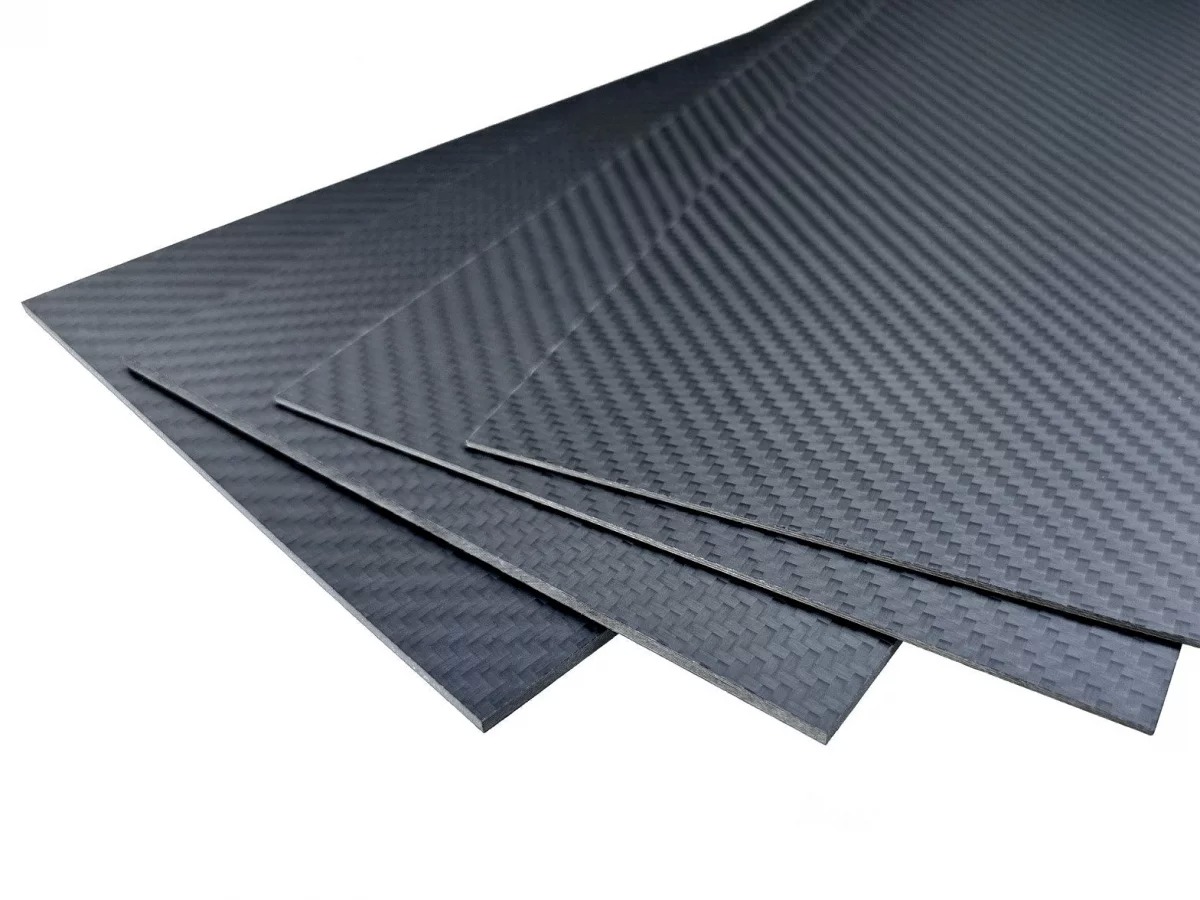

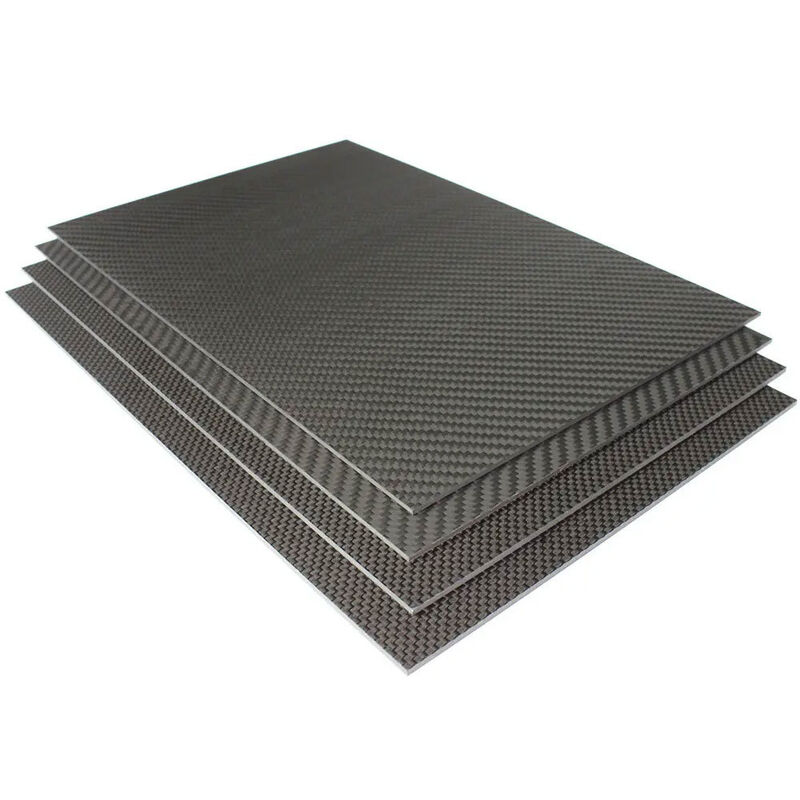

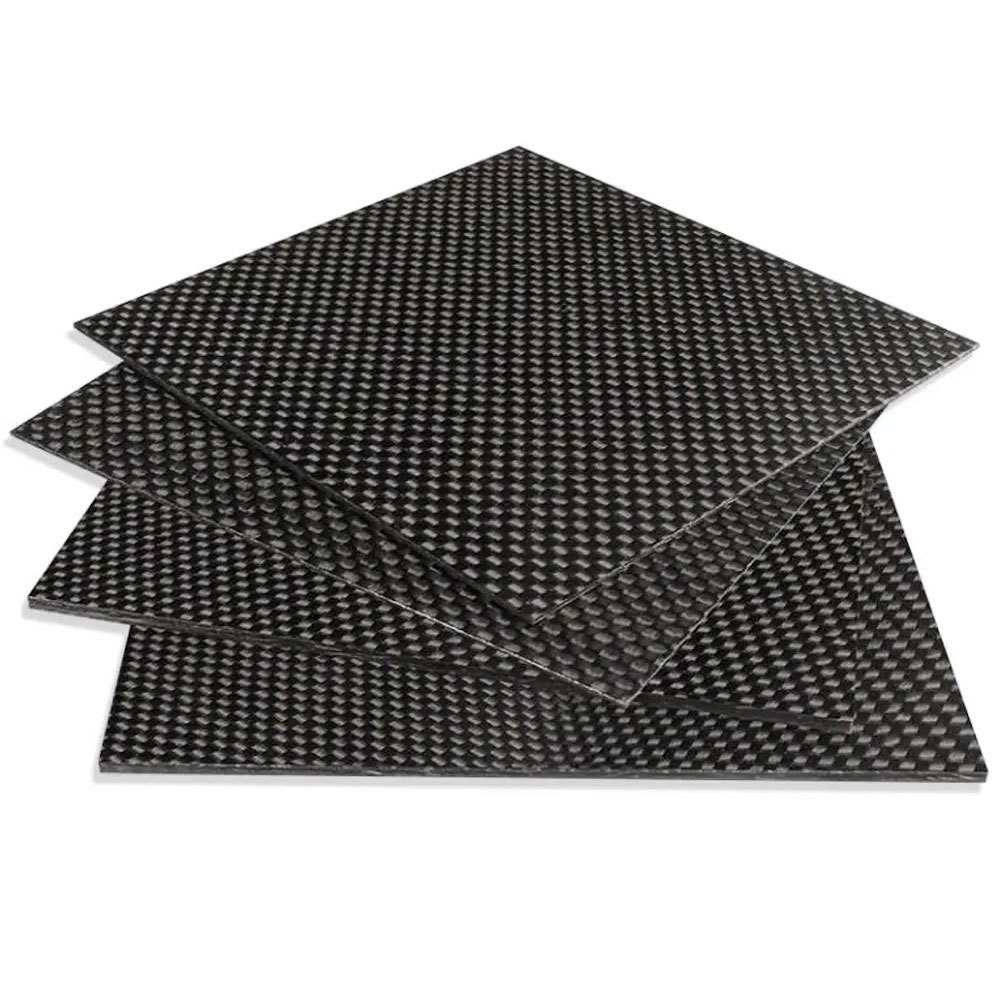

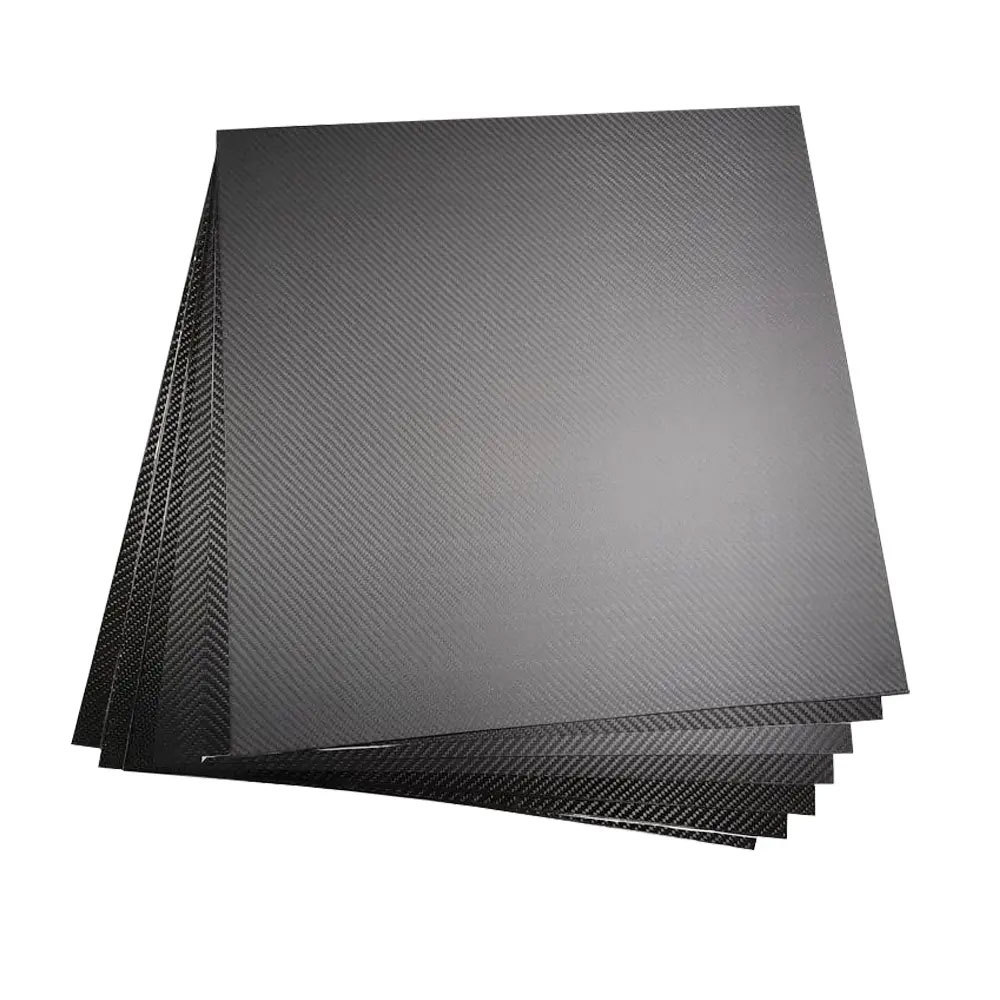

High-Strength 3K Carbon Fiber Plate with Different Thicknesses and Measures

A carbon fiber plate is a flat laminate made from carbon fiber fabric (commonly 3K, 6K, or UD) bonded with epoxy resin and cured under heat/pressure. It’s known for being ultra-strong, lightweight, and stiff.

What‘s the price of a carbon fiber sheet?

As we all know, carbon fiber sheets are composed of carbon fiber and epoxy resin. The cost depends on the carbon fiber material, the plate size, and the thickness. Different carbon fiber materials have significantly different prices. For example, the same size of T700 carbon fiber sheet is much more expensive than T300 material because they have different strengths and applications.

What’s the price of carbon fiber?

10 years ago, the carbon fiber price was about $150 per pound. Now, the average total production cost of “standard modulus” carbon fiber is in the range of $7-9 per pound. Standard modulus refers to a narrow range of fiber stiffness that the industry recognizes as a benchmark. A target selling price of $5-$7 per pound for standard modulus carbon fiber would be viewed by several industries as being the tipping point at which carbon fiber-based composites will achieve massadoption in broad consumer-driven markets. Until the price and total production cost are significantly reduced, and potential large users are convinced that the supply will be available to support their large programs, carbon fiber will predominantly remain a niche material.

So when you want to get the price of carbon fiber sheets, you need to know what specifications of carbon sheets you need, such as the carbon plate size, the thickness, the finish, the weave of the carbon fiber sheets, and the carbon fiber material modulus. You need to get the basic information before you ask a carbon fiber supplier. For example, a T300 material 200*300*1.5mm carbon fiber sheet price is about $14, while a 200*300*2mm carbon fiber plate price is $17, and a T700 carbon fiber material 400*500*3mm carbon fiber board price is $66. You can compare the carbon fiber sheet prices with Amazon or other B2B or B2C websites. Of course, if you want to buy a big quantity of carbon fibre plates, you can tell them your quantity, and they will give you a wholesale price, which will be cheaper.

If you want to buy a special size carbon fiber plate, you should find a carbon fiber factory, which will cut to dimensions witha CNC machining center, which ensures stable and precise dimensions. Usually, carbon fiber sheet thickness tolerance is about 0.2mm; the sheet 4 mm may actually be from 4 mm to 4.2 mm thick. As the thickness increases, the tolerance will also increase; the plate 6 mm may actually be from 5.8 mm to 6.3 mm thick.

At last, if you need to buy carbon fiber sheets or cut some products based on carbon fiber sheets, please contact this carbon fiber supplier—LIJIN carbon fiber team. We will offer you what you want.

Carbon Fiber Sheet Plate Specification:
